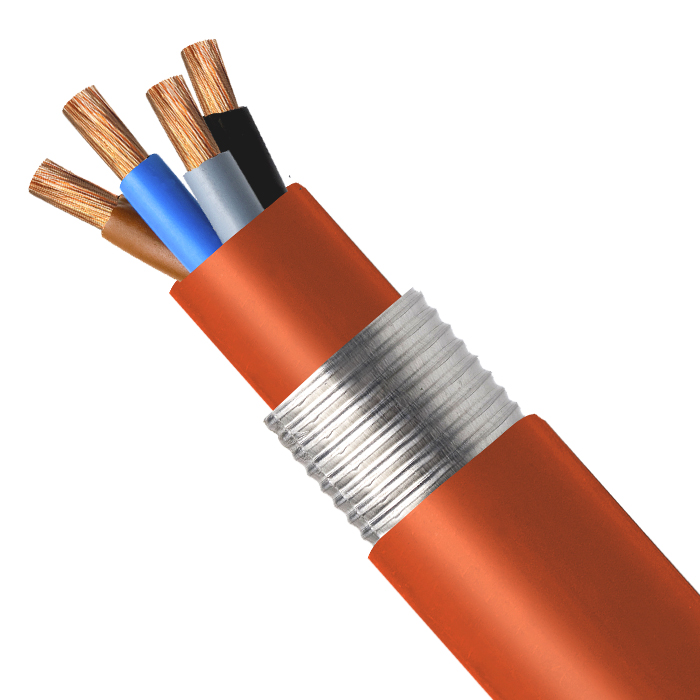

AFIREFÉNIX RZ1F3Z1-K / RZ1FA3Z1-K (AS+) MICA

Functional features

• Technical designation:
  RZ1FA3Z1-K 0,6/1 kV PH120 (AS+)  / RZ1F3Z1-K 0,6/1 kV PH120 (AS+)
• Constructive description:
  IEC 60502-1 (Construction)

  - CONDUCTOR:
  Flexible, annealed, plain copper conductor, class 5 based on standard IEC 60228.
  The conductor is covered by a mica tape.
  - INSULATION:
  Cross-linked polyethylene (XLPE) according to International standard IEC 60502-1
  - ASSEMBLY OF CONDUCTORS:
  In multicore cables, the cores are cabled helically.
  - INNER SHEATH:
  Extruded polyolefin type ST8 according to International standard IEC 60502-1.
  - ARMOUR:
  Tinned steel corrugated tape (or aluminium - single-core cables).
  - OVERSHEATH:
  Extruded polyolefin type ST8 according to International standard IEC 60502-1.

  Identification of cores HD 308 S2:
  2x - brown and blue
  3x - brown, black and gray
  3G - brown, blue and yellow / green
  4x - brown, black, gray, blue
  4G - brown, black, gray, yellow / green
  5G - brown, black, gray, blue, yellow / green
• Rated voltage:
  0.6/1 kV
• Normal operation temperature:
  90ºC
• Short-circuit temperature (5 s max):
  250ºC
• Voltage test:
  3,5 kV
• Colour:
  Orange
• Fire performance:
  - Fire resistant: EN 50200, EN 50362, IEC 60331-1 y 2  (842 ºC - 120 min)
  - Fire retardant: UNE EN 60332-3-24 / IEC 60332-3-24 (cat.C) (H ≤ 2,5 m)
  - Flame retardant: UNE EN 60332-1-2 ; IEC 60332-1-2 (H≤425 mm)
  - Low opacity of emitted smokes: UNE EN 61034-2; IEC 61034-2
           60% < Light transmittance.
           In case of fire, it avoids loss of visibility due to smoke produced by cable combustion
  - Low acidity and conductivity of the emitted gases: EN 60754-2; IEC 60754-2
           pH≥4,3 conductivity < 10 microsiemens/mm
  - Halogen free. Low emission of toxic gases: UNE EN 50267-2-1 / IEC 60754-1 (HCl <0,5 % )
• Type of installation:
  Fixed
• User´s guide:
  Adequate for non autonomous security circuits and service circuits with a centralised autonomous source (alarm circuits, signalling and emergency lighting systems, acoustic signalling, smoke extractors, water pumps for fire extinction).
  Its use is recommended for installations with presence of rodents, and installations in general where the cable is subject to risk of mechanical aggresion.

  These cables are recommended for all those installations in which it is necessary to keep the integrity of the circuits and equipment although they are affected directly by the fire. Its special fire performance protects public health, fireman works and avoid any possible damage to electronic equipments.
• Technical instructions:
  .
• Conductor:
  Flexible
• Halogen free:
  Yes
• Armoured cable:
  Yes
