Afirenas H07Z1-U & H07Z1-R


 EN 50525-3-31, UNE 211002
(Construction and tests)

Low voltage Directive: 2014/35/UE

Reaction to fire (B2ca - s1a, d1, a1)

: Fire retardant according to IEC 60332-3-24; EN 60332-3-24

RoHS compliant

Quality certificate

Certificate icon AENOR <HAR> certificationCertificate icon CPR compliantCertificate icon CE markingCertificate icon RoHS

Technical characteristics & performances

  • Single-core Propiedad del cable: Single-core
  • Solid conductor (class 1) mm2 Propiedad del cable: Solid conductor  (class 1) mm2
  • Stranded conductor (class 2) mm2 Propiedad del cable: Stranded conductor (class 2) mm2
  • Maximum service temperature: 70ºC / 160ºC Propiedad del cable: Maximum service temperature: 70ºC / 160ºC
  • 450 / 750 V C.A. Propiedad del cable: 450 / 750 V C.A.
  • Easier pulling Propiedad del cable: Easier pulling
  • Easy peeling / easy strip Propiedad del cable: Easy peeling / easy strip

Fire performance

  • B2ca-s1a,d1,a1 (reaction to fire) Propiedad del cable: B2ca-s1a,d1,a1 (reaction to fire)
  • Flame retardant Propiedad del cable: Flame retardant
  • Fire retardant Propiedad del cable: Fire retardant
  • Low heat emission Propiedad del cable: Low heat emission
  • Low production of flaming droplets Propiedad del cable: Low production of flaming droplets
  • Low opacity & production of smoke Propiedad del cable: Low opacity & production of smoke
  • Low acidity & conductivity of the gases: pH<4,3 2,5 µS/mm Propiedad del cable: Low acidity & conductivity of the gases: pH<4,3 2,5 µS/mm
  • Halogen free Propiedad del cable: Halogen free
  • Low emission of toxic gases Propiedad del cable: Low emission of toxic gases

Uses and applications

  • Panel and appliance wiring Propiedad del cable: Panel and appliance wiring
  • Installations with risk of fire or explosion Propiedad del cable: Installations with risk of fire or explosion
  • BD2, BD3, BD4 (skyscrapers, tunnels…) Propiedad del cable: BD2, BD3, BD4 (skyscrapers, tunnels…)
  • Buildings receiving the public Propiedad del cable: Buildings receiving the public
  • Residential use Propiedad del cable: Residential use
  • Indoor use Propiedad del cable: Indoor use


  • Coil Propiedad del cable: Coil
  • Drum Propiedad del cable: Drum

Functional features

  • Technical designation:

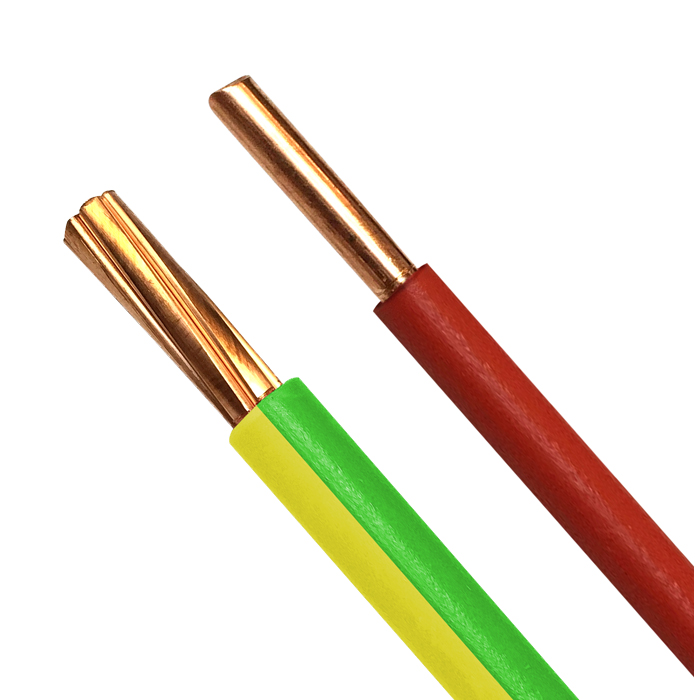

    H07Z1-U (s: 1,5/2,5/4 mm2) H07Z1-R (s= from 6 up to 120 mm2)
  • Constructive description:
    European standard EN 50525-3-31 and Spanish standard UNE 211002.
    Single core non-sheathed cables with halogen-free thermoplastic insulation, and low emission of smoke

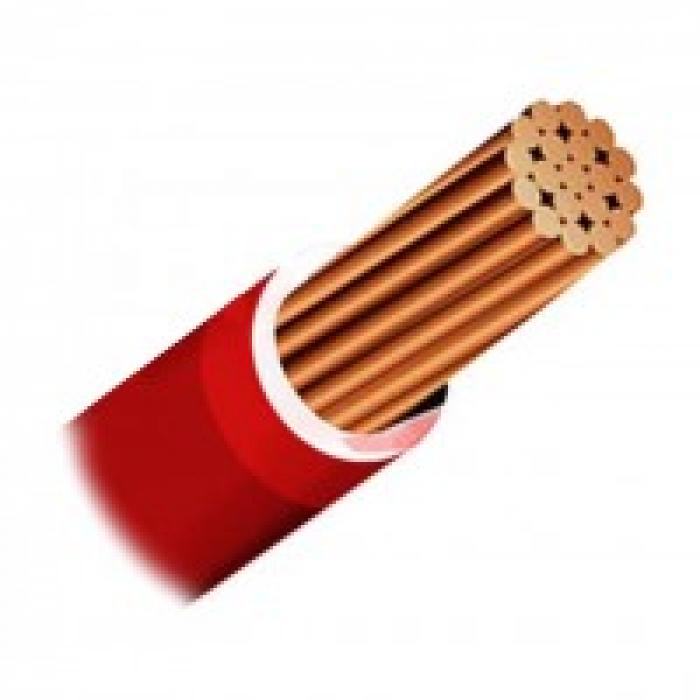

    Rigid annealed plain copper conductor, class 1 (cross sectional areas: 1,5/2,5/4 mm2 – solid (-U)) or class 2 (cross sectional area ≥ 6 mm2 – stranded (-R)) according to the International, European and Spanish standards IEC 60228; EN 60228; UNE EN 60228.
    Halogen free Insulation of thermoplastic polyolefin compound (Type TI 7) according to the European Standard EN 50363-7
  • Rated voltage:
    450/750 V
  • Normal operation temperature:
  • Short-circuit temperature (5 s max):
  • Voltage test:
    2,5 kV
  • Colour:
    *INSULATION: black, brown, gray, blue, yellow-green, red, white. Other colours on request.
  • Fire performance:
    REACTION TO FIRE. Standards
    Declared performances: B2ca-s1a, d1, a1 (EN 50575:2014+A1:2016)

    - Flame retardant: EN 60332-1-2; IEC 60332-1  (H≤425 mm)
    - Fire retardant: EN 50399 (Fs ≤ 1,5 m - Flame source: 20,5 kW)
    - Heat generation: EN 50399 (20,5 kW)  (THR ≤ 15 MJ & Peak HRR ≤ 30 kW; FIGRA ≤ 150 W/s)
    - Low production and opacity of emitted smokes:
          s1 (EN 50399): TSP ≤ 50 m2 & Peak SPR ≤ 0,25 m2/s
          s1a: “s1” & transmittance > 80 % (UNE EN 61034-2; IEC 61034- 2)
    - Flaming droplets and/or particles: EN 50399 (llama: 20,5 kW):
          d1: If no flaming droplets/particles persisting longer than 10 s occurs within 1200 seconds
    - Low acidity and conductivity of the emitted gases: EN 60754-2; IEC 60754-2:
          a1: acidity(pH≥4,3) & conductivity < 2,5 microSiemens/mm
    - System AVCP: 1+
    - Notified body: 0099 AENOR S.A.U.
    - DoP: MB2H07Z1UTYPE2 / MB2H07Z1RTYPE2
    For covered range (+ information), please check out "CPR/DoP" section in our website.
    *The packaging labels of these cables include the CE marking according to the CPR Regulation ((EU) Nº 305/2011) articles 8 and 9
    Other performances:
    - Fire retardant: UNE EN 60332-3-24 / IEC 60332-3-24 (cat.C)
    - Halogen free. Low emission of toxic gases: UNE EN 50267-2-1 / IEC 60754-1
  • Type of installation:
  • User´s guide:
    It is specially indicated for its use in public concurrence places (airports, museums, malls, hospitals, cinemas, schools...) and, in general, whenever an important fire risk exists or where it´s required low smoke and corrosive gases emmisions in case of fire or burning. Its special fire performance protects public health, fireman works and avoids any possible damage to electronic equipments.
    Suitable for fixed protected installation in, lighting and control gear for voltages up to and including 1 000 V A.C. or up to 750 V D.C. to earth.

    TYPE2 cables are for use where special fire performance is necessary, or where local conditions or regulations require increased levels of public safety. They are especially suitable where cables are installed in bunches.

    They must be installed in surface-mounted or embedded conduits or similar closed systems (tube, cable ducting, cable trunking…). It can be used like internal wiring for electrical apparatus in areas under normal temperatures.
    (*) The maximum temperature for a conductor depends on the maximum temperature of the other cables or accessories around them.

    - Maximum admissible currents in continuous duty are shown in the European standard HD 60364-5-52.
    - Maximum storage temperature: 40 ºC. Maximum installation and handling temperature: 5 ºC.
    - Minimum temperature: -10°C (Insulated conductor permanently installed without mechanical exigencies,
    vibrations and movements)

    - Minimum bending radius (mm):
          D ≤ 8 (4D); 8 < D ≤ 12 (5D); 12 < D ≤ 20 (6D); D > 20 (6D);
                D = Cable diameter

    - The tension applied to a cable shall not exceed the following values of tensile stress per conductor, subject to a total maximum tensile force of 1.000 N.
    50 N/ mm2 (during installation)
    In circumstances where a stress exceeding these values would result, a separate stress-bearing member or device shall be used. The method of attaching such a member or device to the cable shall be such that the cable is not damaged.
  • Technical instructions:
  • Conductor:
  • Halogen free:
  • Armoured cable:
