AFIRENAS SHIELD Z1OZ1-K (AS) 300/500 V

Standards

Ref. EN 50288-7 & EN 50525-3-11 (construction and tests)

Low Voltage Directive: 2014/35/UE

CPR Regulation Nº 305/2011/UE:
Reaction to fire (Cca-s1b,d1,a1)

Additional performance in case of fire (if the CPR is not applicable):
IEC 60332-1-2, IEC 60332-3-24, IEC 60754-1 & 2 and IEC 61034-2.

RoHS compliant.

Quality certificate

Certificate icon Low voltage Directive (LVD): 2014/35/EUCertificate icon CPR compliantCertificate icon CE markingCertificate icon RoHS

Technical characteristics & performances

  • Multicore Propiedad del cable: Multicore
  • Bunched conductor (class 5) mm2 Propiedad del cable: Bunched conductor (class 5) mm2
  • Maximum service temperature: 70ºC / 160ºC Propiedad del cable: Maximum service temperature: 70ºC / 160ºC
  • 300 / 500 V C.A. Propiedad del cable: 300 / 500 V C.A.
  • Easy peeling / easy strip Propiedad del cable: Easy peeling / easy strip
  • Easy installation Propiedad del cable: Easy installation
  • Protection against Electromagnetic disturbances Propiedad del cable: Protection against Electromagnetic disturbances

Fire performance

  • Cca-s1b,d1,a1 (reaction to fire) Propiedad del cable: Cca-s1b,d1,a1 (reaction to fire)
  • Flame retardant Propiedad del cable: Flame retardant
  • Fire retardant Propiedad del cable: Fire retardant
  • Low heat emission Propiedad del cable: Low heat emission
  • Low production of flaming droplets Propiedad del cable: Low production of flaming droplets
  • Low opacity & production of smoke Propiedad del cable: Low opacity & production of smoke
  • Low acidity & conductivity of the gases: pH<4,3 2,5 µS/mm Propiedad del cable: Low acidity & conductivity of the gases: pH<4,3 2,5 µS/mm
  • Halogen free Propiedad del cable: Halogen free
  • Low emission of toxic gases Propiedad del cable: Low emission of toxic gases

Uses and applications

  • BD2, BD3, BD4 (skyscrapers, tunnels…) Propiedad del cable: BD2, BD3, BD4 (skyscrapers, tunnels…)
  • Safety installations in case of fire Propiedad del cable: Safety installations in case of fire
  • Buildings receiving the public Propiedad del cable: Buildings receiving the public
  • Industral use Propiedad del cable: Industral use
  • Indoor use Propiedad del cable: Indoor use

Packaging

  • Coil Propiedad del cable: Coil
  • Drum Propiedad del cable: Drum


Functional features

  • Technical designation:
    Z1OZ1-K (AS) 300/500 V
  • Constructive description:
    Standards (construction/tests): Reference EN 50288-7 / EN 50525-3-11.

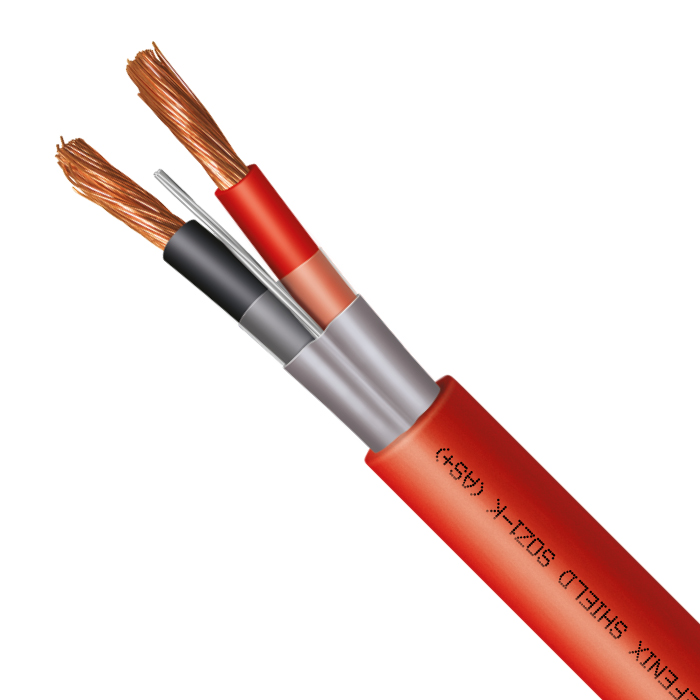

    Construction:
    Conductor: Copper, class 5 (EN 60228 / IEC 60228).
    - Insulation: Thermoplastic polyolefin, LSZH.
    - Shield: Al/PET tape + Tinned copper drain wire. Shield coverage (100 %).
    - Oversheath: Thermoplastic polyolefin, LSZH.

    Rated voltage (Uo/U): 300/500 V AC.

    Max. conductor temperature. Normal operation / short-circuit (t≤5s): 70 ºC / 160 ºC.

    Range: Multiconductor cable. Configurations: 2x1.5 mm2 / 2x2.5 mm2.

    Packaging: Drum/cut to length and Coils (C100 m).
  • Rated voltage:
    300/500 V
  • Normal operation temperature:
    70 ºC
  • Short-circuit temperature (5 s max):
    160 ºC (t < 5s)
  • Voltage test:
    2000 V CA.
  • Colour:
    Oversheath: Red /// Core identification: 2x - red and black.
  • Fire performance:
    Reaction to fire classification (CPR - EN 50575 & EN 13501-6): Cca-s1b,d1,a1.

    Other fire performance features (when CPR Regulation is not applicable):
    Flame & fire retardant, halogen-free and low gas and smoke emission with low opacity/toxicity/corrosivity/conductivity
    IEC 60332-1-2, IEC 60332-3-24, IEC 61034-2, IEC 60754-1 and IEC 60754-2.
  • Type of installation:
    Fixed
  • User´s guide:
    Shielded cable, recommended for electrical circuits that require protection against disturbances and electromagnetic interference.

    Specifically designed for use in safety circuits associated with fire detection and alarm systems (heat or smoke detectors, manual call points, warning devices...).

    - Ambient operating temperature (ranges):
       • Minimum: - 30 ºC (final static position, protected without exposure to movement, mechanical damages, shocks, or vibrations).
       • Maximum: + 70 ºC.

    - Minimum temperature for cable laying during installation and assembly of accessories: 0 ºC.
    This temperature is valid for the cable itself and not for the environment. If possible, the temperature of the cable shall be raised before laying (e.g., storing it in a heated building) to facilitate handling and reduce the risk of damages.

    - Minimum bending radius: 10 x D. D = overall diameter of the cable in mm.
    Bending nearby the temperature limits should be carried out extra carefully.

    - Maximum pulling force:
       • If the traction force is applied on the copper conductors: F = 50xS (N). "S" = cross sectional area of conductors (mm2).
       • If the traction force is applied on the oversheath: F = 3xD2 (N). "D" = overall diameter of the cable (mm).
  • Technical instructions:
    .
  • Conductor:
    Flexible
  • Halogen free:
    Yes
  • Armoured cable:
    No
