IEC 61386-1 & 22, EN 61386-1 & 22
(Construction and tests) ICTA 3422 (tube)
EN 50525-2-31, IEC 60227-3
(Construction and tests) H07V-K
Low voltage Directive: 2014/35/UE
CPR REGULATION Nbr. 305/2011/UE:
Reaction to fire (Eca) (H07V-K)
Technical characteristics & performances
- Bunched conductor (class 5) mm2
- Maximum service temperature: 70ºC / 160ºC
- 450 / 750 V C.A.
- Mechanical protection
- Time saving
- Easy installation
- Eca (reaction to fire)
- Flame retardant
Uses and applications
- Panel and appliance wiring
- Residential use
- Industral use
- Indoor use

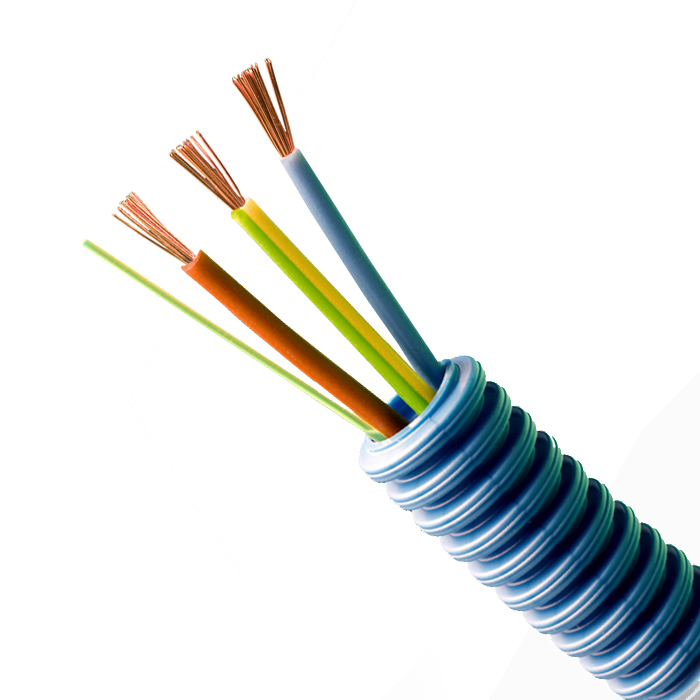

PRECAB ICTA 3422 + BARRYFLEX H07V-K + POLYAMIDE "cable pull strap"
BARRYFLEX H07V-K (insulated wires)
EN 50525-2-31, IEC 60227-3 (Construction and tests)
Single core non-sheathed cables with PVC thermoplastic insulation.
Flexible, annealed, plain copper conductor, class 5 acc. to IEC 60228, EN 60228.
Polyvinyl chloride (PVC) insulation, type TI 1 acc. to EN 50363-3.
Number of BARRYFLEX H07V-K wires in the tube: 2,3,4, 5
Cross-sectional area size range: 1,5 to 6 mm2.
PRECAB ICTA 3422 (tube)
IEC 61386-1, IEC 61386-22, EN 61386-1, EN 61386-22 (Construction and tests)
Pliable conduit system for cable management.
The corrugated tube of the PRECAB system is made of polypropylene compound with low-halogen composition. The product is non flame propagator and in case of fire has low toxic and corrosive gases emissions.
They are manufactured in outer diameters of 16, 20, 25 mm. which are selected by MIGUÉLEZ, according to the the internal wiring composition and national Regulations.
It is marked according to EN 61386-22, and includes the first 4 digits (3422) of the “Standard classification code".
- Compression test medium 750 N
- Impact test High 6 Jules
- Minimum installation temperature: -5ºC
- Maximum installation temperature: 90ºC
POLYAMIDE "cable pull strap":
Especially destined to add more wires in the conduit/tube. Diameter: 1 mm. Halogen free and flame retardant. It helps you through the process of pulling cables through those hard-to-reach places.
Normal operation temperature:
Short-circuit temperature (5 s max):
2,5 kV (H07V-K)
TUBE PRECAB (Blue) -
PRECAB ICTA 3422 (tube)
- Flame retardant: IEC 60695-11-2
BARRYFLEX H07V-K (Wire)
REACTION TO FIRE. CPR REGULATION (EU) nº 305/2011.
Declared performances: Eca (EN 50575:2014+A1:2016)
- Flame retardant: EN 60332-1-2; IEC 60332-1 (H≤425 mm)
- DoP: MEH07VK
For covered range (+ information), please check out "CPR/DoP" section or BARRYFLEX H07V-K datasheet in our website.
*The packaging labels of these cables include the CE marking according to the CPR Regulation ((EU) Nº 305/2011) articles 8 and 9
Type of installation:
For installation in residential or industrial buildings.
It can be installed embedded in masonry/concrete or in a building/ceiling/raised-floor void.
MIGUELEZ does not commercialize it.
The system accessory is a sleeve with an internal diameter which has the same tube diameter measure and with equal/superior tube characteristics. The system assambly can be made by entering, pressuring and slighting the end of the pipe in the sleeve. Taping previously at the end is very recommended. In the case of requiring greater IP terms a silicone seal would be required.
