You are in: Home | Catalogue | AFIRENAS X MULTIPLE RZ1-K(AS)
Back to product search



IEC 60502-1
(Construction and tests)


Regulation CPR (EU) No 305/2011:
Reaction to fire (Cca-s1b, d1, a1)

RoHS compliant

Quality certificate

Certificate icon AENOR certificationCertificate icon CESMEC certificationCertificate icon Low voltage Directive (LVD): 2014/35/EUCertificate icon CPR compliantCertificate icon CE markingCertificate icon RoHS

Technical characteristics & performances

  • Multicore Propiedad del cable: Multicore
  • Bunched conductor (class 5) mm2 Propiedad del cable: Bunched conductor (class 5) mm2
  • Maximum service temperature: 90ºC / 250ºC Propiedad del cable: Maximum service temperature: 90ºC / 250ºC
  • 0,6/1 (1,2) kV C.A Propiedad del cable: 0,6/1 (1,2) kV C.A
  • Oil resistance Propiedad del cable: Oil resistance
  • Low temperature resistance Propiedad del cable: Low temperature resistance

Fire performance

  • Cca-s1b,d1,a1 (reaction to fire) Propiedad del cable: Cca-s1b,d1,a1 (reaction to fire)
  • Flame retardant Propiedad del cable: Flame retardant
  • Fire retardant Propiedad del cable: Fire retardant
  • Low heat emission Propiedad del cable: Low heat emission
  • Low production of flaming droplets Propiedad del cable: Low production of flaming droplets
  • Low opacity & production of smoke Propiedad del cable: Low opacity & production of smoke
  • Low acidity & conductivity of the gases: pH<4,3 2,5 µS/mm Propiedad del cable: Low acidity & conductivity of the gases: pH<4,3 2,5 µS/mm
  • Halogen free Propiedad del cable: Halogen free
  • Low emission of toxic gases Propiedad del cable: Low emission of toxic gases

Uses and applications

  • Panel and appliance wiring Propiedad del cable: Panel and appliance wiring
  • Control & command Propiedad del cable: Control & command
  • Installations with risk of fire or explosion Propiedad del cable: Installations with risk of fire or explosion
  • BD2, BD3, BD4 (skyscrapers, tunnels…) Propiedad del cable: BD2, BD3, BD4 (skyscrapers, tunnels…)
  • Buildings receiving the public Propiedad del cable: Buildings receiving the public
  • Industral use Propiedad del cable: Industral use
  • Outdoor use Propiedad del cable: Outdoor use


  • Drum Propiedad del cable: Drum

Functional features

  • Technical designation:
    RZ1-K (AS) 0,6/1 kV

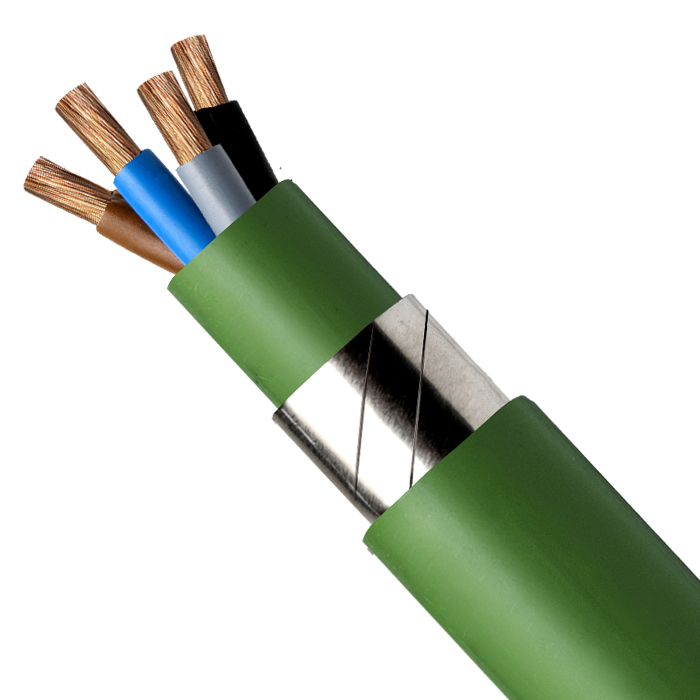

  • Constructive description:
    IEC 60502-1 (Construction and tests)

    Flexible, annealed, plain copper conductor, class 5 based on standard IEC 60228 .
    Cross-linked polyethylene (XLPE) according to International standard IEC 60502-1
    The cores are cabled helically.
    Optional. Extruded. Halogen free thermoplastic material, suitable for the operating temperature of the cable and compatible with the insulation and oversheath material.
    Extruded polyolefin type ST8 according to International standard IEC 60502-1.

    Core identification is according to standard EN 50334.
    All cores in the cable are black and have an inscription along the whole length of them, except one core which is coloured green/yellow (this core isn´t numbered).

    The inscription is composed of marks repeated at regular intervals along the whole length of the core.

    Each mark comprises:
       - A reference number beginning at 1 in Arabic numerals;
       - A dash which underlines this number and indicates the direction in which the number should be read.
  • Rated voltage:
    0.6/1 kV
  • Normal operation temperature:
  • Short-circuit temperature (5 s max):
  • Voltage test:
    3,5 kV (5 minutes)
  • Colour:
    Oversheath: Green or black / Insulation: EN 50334 (N cores: N-1 black numbered cores + 1 G/Y core)
  • Fire performance:
    Reaction to fire:  Cca-s1b, d1, a1 (EN 50575:2014+A1:2016)
       • EN 60332-1-2; IEC 60332-1 (H≤425 mm)  Flame retardant
       • EN 50399 (flame source: 20,5 kW) Fs ≤ 2 m  Fire retardant
       • Low heat generation: EN 50399 (flame source: 20,5 kW)
             - Total heat released: THR ≤ 30 MJ
             - Maximum value of the heat released: Peak HRR ≤ 60 kW
             - Indication of heat increase: FIGRA ≤ 300 W/s
       • Low production and opacity of emitted smokes:
             - s1 (EN 50399):
                -Total smoke production: (TSP) ≤ 50 m2
                -Maximum value of smokes released : (Peak SPR) ≤ 0,25 m2/s
             - s1b: s1 and 60% < Transmittance < 80 % (EN 61034-2; IEC 61034-2)
       • Low production of flaming droplets (EN 50399 - flame source:20,5 kW):
             - d1: No flaming droplets/particles persisting longer than 10' occurs within 1200'.
       • Low acidity and conductivity of the emitted gases:
             - a1: pH≥4,3 conductivity < 2,5 microSiemens/mm (EN 60754-2; IEC 60754-2)

    For covered range (+ information), please check out "CPR/DoP" section in our website.
    *The packaging labels of these cables include the CE marking according to the CPR Regulation ((UE) Nº 305/2011) articles 8 and 9.

    Other performances:
    Fire retardant: EN 60332-3-24 / IEC 60332-3-24 (cat.C)
    Halogen free. Low emission of toxic gases: EN 60754-1 / IEC 60754-1
  • Type of installation:
  • User´s guide:
    It is specially indicated as a command or control cable for fixed installations in electrical distribution networks, tunnels, public access premises (hospitals, airports, malls, cinemas, schools...), places with fire or explosion hazard, high-rise buildings and, in general, whenever its special fire performance behaviour is required (i.e when an important fire risk exists or where it´s required a low smoke emission and corrosive gases in case of fire).

    Its special fire performance protects public health or fireman works and avoid possible damages to electronic equipments.

    It is suitable for fixed installations with complex paths where its flexibility allows an easier installation.

    Suitable for indoor and outdoor (protected from direct and continuous exposure to UV radiation) installations, on supports in the air (brackets, clamps, cable trays, cable ladders...), in conduits or directly buried .

    — Temperature ranges:
    • Maximum ambient temperature: + 60 ºC.
    • Minimum ambient temperature: - 30 ºC (static, permanently installed, protected against mechanical damage, without exposure to movement, mechanical damages, shocks, or vibrations).
    • Minimum temperature for cable laying during installation and assembly of accessories: 0 ºC.
  • Technical instructions:
  • Conductor:
  • Halogen free:
  • Armoured cable:
