Barryflex SHIELD VC4V-K 300/500 V

Standards

Special design based on standard EN 50525-2-11

LOW VOLTAGE DIRECTIVE: 2014/35 / EU

CPR Regulation (EU) No 305/2011:
Reaction to fire (Eca)

RoHS compliant

Quality certificate

Certificate icon Low voltage Directive (LVD): 2014/35/EUCertificate icon CPR compliantCertificate icon CE markingCertificate icon RoHS

Technical characteristics & performances

  • Multicore Propiedad del cable: Multicore
  • Bunched conductor (class 5) mm2 Propiedad del cable: Bunched conductor (class 5) mm2
  • Maximum service temperature: 70ºC / 160ºC Propiedad del cable: Maximum service temperature: 70ºC / 160ºC
  • 300 / 500 V C.A. Propiedad del cable: 300 / 500 V C.A.
  • Easy peeling / easy strip Propiedad del cable: Easy peeling / easy strip
  • Protection against Electromagnetic disturbances Propiedad del cable: Protection against Electromagnetic disturbances

Fire performance

  • Eca (reaction to fire) Propiedad del cable: Eca (reaction to fire)
  • Flame retardant Propiedad del cable: Flame retardant

Uses and applications

  • Control & command Propiedad del cable: Control & command
  • Industral use Propiedad del cable: Industral use
  • Instrumentation Propiedad del cable: Instrumentation

Packaging

  • Drum Propiedad del cable: Drum


Functional features

  • Technical designation:
    VC4V-K 300/500 V

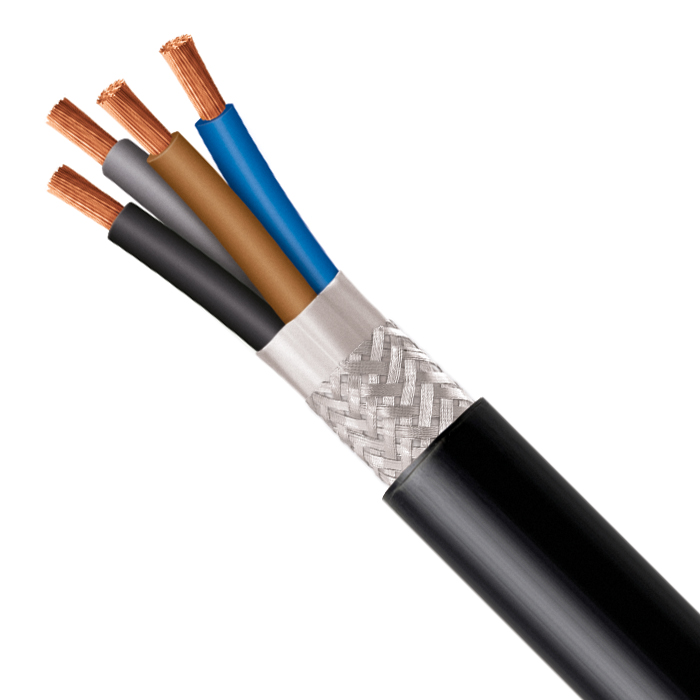

  • Constructive description:
    Special design based on standard EN 50525-2-11.

    - CONDUCTOR:
    Flexible, annealed, plain copper conductor, class 5 based on International standard IEC 60228.
    - INSULATION:
    PVC type TI 2 acc. to EN 50363-3.
    - ASSEMBLY OF CONDUCTORS:
    In multicore cables, the cores are cabled helically.
    - SHIELD:
    Polyester tape + copper braid with a coverage greater than 60%.
    NOTE: Other types of materials or coverages, on request.

    - OVERSHEATH:
    PVC type TM 2 according to standard EN 50363-4-1.

    Identification of cores HD 308 S2:
    2x - brown and blue
    3x - brown, black and gray
    3G - brown, blue and yellow / green
    4x - brown, black, gray, blue
    4G - brown, black, gray, yellow / green
    5G - brown, black, gray, blue, yellow / green

    Multicore: From 6 up to 50 (s=1,5/2,5 mm2) - EN 50334 (black numbered cores + G/Y).
  • Rated voltage:
    300/500 V
  • Normal operation temperature:
    70ºC
  • Short-circuit temperature (5 s max):
    160ºC
  • Voltage test:
    2 kV
  • Colour:
    Oversheath: Black / Insulation: HD 308 S2 (2-5) EN 50334 (6-50)
  • Fire performance:
    - Reaction to fire: Eca   (EN 50575:2014+A1:2016)
    • EN 60332-1-2; IEC 60332-1 (H≤425 mm) Flame retardant

    For covered range (+ information), please check out "CPR/DoP" section in our website.
    *The packaging labels of these cables include the CE marking according to the CPR Regulation ((EU) Nº 305/2011) articles 8 and 9.
  • Type of installation:
    Fixed
  • User´s guide:
    Barryflex SHIELD VC4V-K 300/500 V control & instrumentation cables are specially indicated for its use in industries or buildings and electrical installations where a protection against electromagnetic interference is necessary.
  • Conductor:
    Flexible
  • Halogen free:
    No
  • Armoured cable:
    No
